PROJECT LIST
DKnapp Fire Design Pty Ltd personnel have been involved in various roles on the projects nominated below;
Road & Rail Tunnel Projects Experience
- M5 Tunnel (Road) Original, Sydney NSW, Design Engineer.
- M5 Tunnel (Road) Extension 2019, Sydney NSW, Design Engineer.
- M4/M5 Tunnel (Road) Link, Sydney NSW, Design Engineer / Reviewer.
- Rosella Interchange Tunnel (Road), Design Engineer / Reviewer.
- Eastern Distributor Road Tunnel (Road), Sydney NSW, Design Engineer.
- Graham Farmer Tunnel (Road), Perth WA, Design / Project Engineer.
- City Link Tunnel 1 Road Tunnel (Road), Melbourne Victoria, Design Engineer.
- City Link Tunnel 2 Road Tunnel (Road), Melbourne Victoria, Design Engineer.
- Cross City Tunnel (Road), Sydney NSW, Design Engineer.
- Parramatta Rail Tunnel (Rail), Sydney NSW, Design Engineer.
- Lane Cove Tunnel (Road), Sydney NSW, Design Engineer.
- Johnson Hill Tunnel (Road), New Zealand, Design Engineer.
- Clem7 Tunnel (Road), Sydney NSW, Design Engineer.
- New Metro Rail Tunnel, Perth WA, Design Engineer.
- Eastern Rail Link Tunnel (Rail), Sydney NSW, Design Engineer.
- Brisbane Link Road Tunnel (Air Port Link Tunnel, Road dedicated Busway), Brisbane QLD, Design Engineer.
- Brisbane Link Busway Tunnel (dedicated Road Tunnel, general traffic), Brisbane QLD, Design Engineer.
Fire Protection Systems Projects Experience;
- Yetagun Gas Platform Project South East Asia, Design Engineer / Drafty.
- BP Kwinana Refinery- LPG Vessel Deluge Systems Kwinana, Perth WA, Design Engineer / Drafty.
- BP Kwinana Refinery- Foam-Deluge Systems Kwinana, Perth WA, Design Engineer / Drafty.
- WMC Leinster Bulk Fuel Tank Foam Systems, Leinster WA, Design Engineer / Drafty.
- Garden Island Naval Base WA Bulk Fuel Tank Sub-Surface Foam Systems, Perth WA, Design Engineer / Drafty.
- Hamersley Iron Tom Price & Paraburdoo WA, above & below ground conveyor sprinkler & deluge fire protection, general fire protection design to Australian & Factory Mutual Standards, Tom Price & Paraburdoo WA, Design Engineer / Drafty.
- Burswood Casino Complex, Perth WA, Design Engineer / Drafty.
- Myers Forrest Chase, Perth WA, Design Engineer / Drafty.
- Theatre & Spires, Melbourne Victoria, Design Engineer / Drafty.
- Concert Hall/Theatre & Spires, Melbourne Victoria, Design Engineer / Drafty.
- Hamersley Iron Tom Price, Tom Price WA, Design Engineer / Drafty.
- BHP Port Headland LNG, Port Hedland WA, Design Engineer / Drafty.
- Coles & Action Supermarkets, Various throughout WA, Design Consultant / Drafty.
- Concert Hall, Melbourne Victoria, Design Engineer / Drafty.
- WMC Leinster Foam Systems Various WA, Design Consultant / Drafty.
- Lo Yang A Power Station, Melbourne Victoria, Design Engineer / Drafty.
- Chemeq, Rockingham WA, Design Consultant / Drafty.
- And many other projects.
DKnapp Fire Design Projects Completed and ongoing;
- Apartment Towers (multi level apartments) at ;-
- Burswood Apartments Towers 3,4,5, Perth WA, Design Engineer / Draftsman.
- Burswood Apartments Lot 23-24, Perth WA, Design Engineer / Draftsman.
- Mandurah Apartments, Mandurah WA, Design Engineer / Draftsman.
- Residential Apartments at ;-
- One Brighton Residential Apartments, Mandurah WA, Design Engineer / Draftsman.
- Leighton Beach Residential Apartments, Perth WA, Design Engineer / Draftsman.
- Union Street Residental Apartments, Victoria VIC, Design Engineer / Draftsman.
- Shopping Centers at ;-
- Bennett Springs Shopping Centre, Perth WA, Design Engineer / Draftsman.
- Kinross Shopping Centre Perth WA, Design Engineer / Draftsman.
- Numerous Coles / Actions / Woolworths / IGA Stores located in Shopping Centers throughout Western Australia.
- Perth Arena (specific areas only), Perth WA, Design Engineer / Draftsman.
- Busway Perth, Underground Bus Terminal Project Perth WA (Deluge Water Spray, Fire Hydrants, Fire Hose Reels, Fire Sprinkler Systems (wet), Fire Pumps and Fire Water Tanks, Fire Extinguishers, for the fire contractor MP&HE Services, Designer / Draftsman / Systems Audits.
- Retirement Homes at ;-
- Residentail Fire Protection systems at Kinga Gardens, Perth WA, Design Engineer / Draftsman.
- Residentail Fire Protection systems at Rowethorpe, Perth WA, Design Engineer / Draftsman.
- Kakeeya Nursing Home, Fremantle WA, Consultancy Design / Draftsman / Consultancy.
- West Perth Football Club Extensions (Joondalup Arena), Design Engineer/Draftsman.
- Numerous underground deluge water spray systems in the explosives magazines at ;-
- St Ives Gold Mine, Kalgoolie WA, Design Engineer/Draftsman.
- Vivian Gold Mine, Kalgoolie WA, Design Engineer/Draftsman.
- Granny Smith Gold Mine, Kalgoolie WA, Design Engineer/Draftsman.
- International fire codes fire protection systems at ;-
- Sealy Warehouse Canning Vale WA, (Factory Mutual Design Codes), Consultancy Designer / Draftsman. Lions Dairy Bentley WA, (Factory Mutual Design Codes), Consultancy Designer / Draftsman.
- Tronox (Formally Tiewest) Muchea Site, fire sprinkler system design for dedicated 100% capacity diesel fire pumps ( 2 off primary & standby), fire protection systems to buildings and conveyors to Factory Mutual (FMG) standards, Muchea WA, Design Engineer / Draftsman.
- Tronox (Formally Tiewest) Muchea & Cooljaeloo Site, Dredge (C1 & Pelican) Deluge/Sprinkler Design Reviews, Fire systems recommendations, Dredge C1 designing new control valve skids + new Fire hydrants, Pelican upgrading skid to incorporate 2 off Fire Hydrants, Consultancy Designer / Draftsman.
- Perth International Airport at ;-
- Terminal 1 extensions to the existing system, Perth WA, Design Engineer / Draftsman.
- Terminal for flyin-flyout workers, Perth WA, Design Engineer / Draftsman.
- C-Generation Builing (Power generation facility for the international airport complex), Perth WA, Design Engineer / Draftsman.
- Fiona Stanley Hospital Gas Suppression System specific to critical areas at ;-
- Numerous Gaseous Fire Systems, Perth WA, Design Engineer / Draftsman.
- Heli Pad Landing platform Foam Suppression via 3 large volume oscillating water spray cannons, Perth WA, Design Engineer / Draftsman.
- DKnapp Fire Design has provided assistance & worked on many Road / Rail Tunnels at ;-
- Eastlink Road Tunnel Victoria
- Parramatta Rail Tunnel Sydney NSW
- Brisbane Rail / Road Tunnels QLD
- F3M2 Link Road Tunnel Sydney NSW
- Tintenbat to Ewingsdale Rail Tunnel Sydney NSW
- And many other projects.

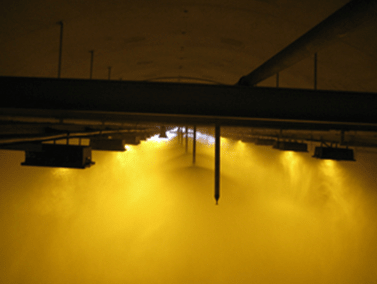

Fire Deluge water discharge test in a typical road tunnel
Road Tunnel Deluge system operating, a view from above the deluge nozzles, showing the magnitude of the deluge spray and the fire fighting capacity if activated. Generally the specifications for a road tunnel activation area cover the largest vehicle allowed in the tunnel, typically a B-Double semi trailer.Tunnel specific operating parameters are adopted for each system.In event of a deluge system activation, all vehicle traffic has to be stopped prior to activation, as the water deluge is so heavy there is no vision if driving through even a low speeds, and the amount of water on the road surface may cause the vehicle to aquaplane loosing tyre grip on the road and accidents will occur.
Coles Stores - Typical Front Store Image
Coles Stores WA-DKnapp Fire Design principle designer has carried out both Consultancy & Construction Design for many Coles stores throughout WA for new and existing stores that were being upgraded, both in the metro area and country.Each store layout is generally the same based on the Coles standard design package, but each has is own unique requirements (i.e. locations, water supplies, part of a small or large shopping center.)
Action Stores - Typical Front Store Image
Action Stores WA-DKnapp Fire Design principle designer has carried out both Consultancy & Construction Design for many Action stores throughout WA for new and existing store that were upgraded.Each store layout is generally the same based on the Actions standard design package, but each has is own unique requirements (i.e. locations, water supplies, part of a small or large shopping center.)

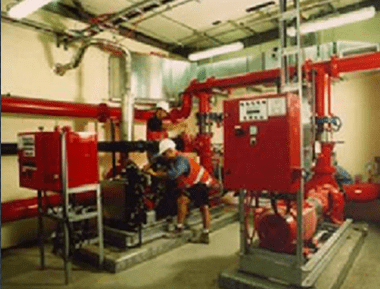

Fire Protection Pump Set - Typically Arrangement
Typical Fire Pump assembly to AS2941, one primary electric pump set, and one secondary diesel pump set, each capable of providing 100% system demand capacities, and can if required can run in parallel.Where electric power is unreliable or too expensive to install, twin diesel fire pumps are provided (one primary and one secondary), each capable of providing 100% system demand capacities, and can if required can run in parallel. The testing of these pump sets is very important, if called for in a fire senario, they must operate to the original designed parameters (flows and pressures) to ensure the fire protection system can operate to the design requirements.The fire protection testing code AS1851 covers in detail the testing requirements.

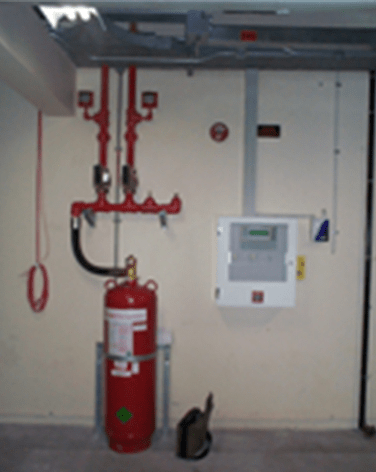

FM200 Fire Suppression Typical cylinder / piping arrangement & Control Panel
FM200 Fire Suppression Typical cylinder / piping arrangement & Control PanelFM200 Gaseous Fire Suppression System, adjacent is a typical FM200 Gaseous System storage cylinder arrangement. DKnapp Fire Design has had experience with all types of gaseous fire suppression systems (i.e. FM200, Argonite, Inergen, CO2), and can assist in the selection and design of the appropriate system depending on the client specific requirements, complying to either Australian Standards or International codes depending on the clients requirements.The adjacent system has 2 directional control valves, that will when activated allow the cylinder pressure to flow, and depending on the fire location the appropriate directional valve opens directing the FM200 agent to the risk that has a fire condition. This type of system reduces the fixed asset costs, where once cylinder can protect 2 risks. This is only suitable for risks of similar volume.
Where volumes are considerably different, then one cylinder per risk will be required.The fire alarm panels to the right of the FM200 cylinder, is equipped with a dual zone fire circuit (this means that 2 separate fire detection zones, usually one smoke detector and the second thermal detectors), both detection zones must go into a alarm condition, then a 30 second count down begins where the system activation can be ABORTED by pressing a stop gas release station, but the alarm signals are sent even if the gas discharge is aborted! Also evacuation warning lights and sirens activate in the risk are, warning all people to leave the room as gas activation is imamate. Some fire suppression gases can be fatal if people stay in the room.The above pictures are a samples of projects, the DKnapp's Fire Design principle designer has been involved with during his 35+ years experience in the fire protection field. We can assist you with your fire protection designs and can recommend good quality supplies, pipe fabrication shops and site installation & testing companies.For any additional information or project queries, please go to our Contact Us page or at admin@dknappfiredesign.com.au
